Caminar por un campo de trigo abrasado por el sol o un viñedo embarrado en [2026] revela la brutal realidad física de robots de agricultura de precisión. A diferencia de los laboratorios estériles y con clima controlado de Silicon Valley, la granja es un cementerio para el hardware frágil. El equipo enfrenta un bombardeo constante de radiación UV de alta intensidad, fertilizantes corrosivos e impactos de alta velocidad de piedras sueltas o tallos de maíz pesados. Para los ingenieros, el desafío no es simplemente hacer que el robot navegue de forma autónoma; es asegurar que la carcasa exterior sobreviva la temporada sin fallas estructurales. Este exigente requisito ambiental exige un cambio fundamental en cómo abordamos la fabricación de carcasas para robots agrícolas.
El moldeo por inyección de termoplásticos tradicional a menudo falla cuando se escala al tamaño de un tractor autónomo, un robot desmalezador de ancho amplio o una cosechadora de huertos. Los paneles de gran escala propensos a la deformación y los costos masivos de NRE de los moldes de acero hacen que los métodos tradicionales sean una carga financiera para la producción de volumen bajo a medio. Jucheng Precision aborda estos obstáculos de fabricación aprovechando el moldeo por reacción por inyección (RIM) avanzado y polímeros de alto impacto diseñados específicamente para el ciclo agrícola moderno.

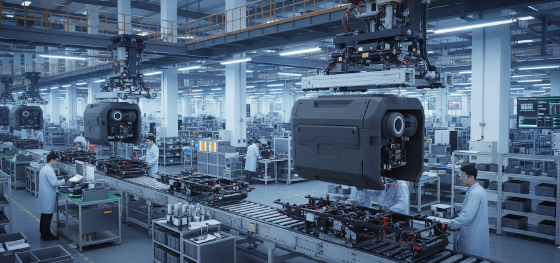

Operando desde el centro de fabricación de precisión de Shenzhen, JUCHENG cierra la brecha entre el diseño digital y la durabilidad lista para el campo. Nos especializamos en producir carcasas estructurales de gran tamaño que protegen los cerebros sensibles de IA y los delicados sensores del caos del campo. Esta guía explora por qué la tecnología RIM y los polímeros especializados como el DCPD son los estándares de oro para la próxima generación de hardware agrícola autónomo.
contenido:
Datos comparativos de materiales para robots agrícolas
Resolviendo la deformación en carcasas agrícolas masivas
Moldeo por reacción por inyección para paneles estructurales de AgTech
DCPD: El escudo irrompible para robótica de servicio pesado
Texturas VDI y resistencia a la abrasión en el barro
JUCHENG: Puente de escala hacia servicios de producción
Preguntas frecuentes: Fabricación de hardware para robótica agrícola
Datos comparativos de materiales para robots agrícolas
Seleccionar el polímero correcto determina si un robot sobrevive una sola temporada de cosecha o dura una década de servicio. El diciclopentadieno (DCPD) es un polímero termoestable que supera a los termoplásticos tradicionales en casi todas las métricas de exterior. Mientras que los metales son propensos a la oxidación y abolladuras, y los plásticos estándar como el ABS se vuelven quebradizos bajo la exposición a los rayos UV, el DCPD mantiene su integridad. Los siguientes datos destacan por qué JUCHENG prioriza los materiales RIM termoestables para aplicaciones agrícolas de servicio pesado.
| Métrica | DCPD (RIM) | ABS (Inyección) | PC (Inyección) |
|---|---|---|---|
| Resistencia al Impacto (J/m) | 450 - 650 | 150 - 300 | 600 - 800 |
| Resistencia química | Excelente | Moderada | Pobre (Tensiones) |
| Estabilidad UV | Muy alta | Baja (Amarillea) | Moderada |
| Tamaño Máximo de Pieza | 2500mm+ | < 800mm | < 600mm |
| Tipo de Molde | Aluminio | Acero | Acero |
DCPD representa un salto adelante en la ciencia de materiales para robótica exterior. Su baja viscosidad durante el proceso de moldeo le permite llenar moldes complejos y de gran escala sin crear las líneas de unión internas o líneas de soldadura que debilitan las piezas tradicionales de moldeo por inyección. Esto resulta en un componente isotrópico que tiene igual resistencia en todas las direcciones, un factor crítico cuando se trata de las tensiones torsionales impredecibles que se encuentran en entornos agrícolas todoterreno. Además, el coeficiente de expansión térmica del DCPD es significativamente más estable que la mayoría de los termoplásticos, asegurando que los sellos y juntas permanezcan herméticos a través de los ciclos fluctuantes de temperatura día-noche en campos abiertos.
Resolviendo la deformación en carcasas agrícolas masivas
Los paneles agrícolas de gran formato que miden más de un metro de longitud crean tensiones internas extremas durante el moldeo por inyección tradicional de alta presión. Los ciclos de alta presión requieren herramientas de acero masivas que pueden costar más de 100.000 €, creando una barrera financiera masiva para las startups de AgTech que apuntan a implementaciones de lotes pequeños de 100 a 500 unidades. Además, las piezas termoplásticas grandes a menudo sufren marcas de hundimiento y enfriamiento desigual debido a su alta masa térmica, lo que lleva a una inestabilidad dimensional que impide un sellado adecuado contra contaminantes ambientales.
Los entornos agrícolas exacerban estos defectos físicos al instante. Un guardabarros o una tapa de batería ligeramente deformados permiten que el polvo fino particulado—común en operaciones de labranza—pase por alto las juntas de goma y contamine los componentes electrónicos internos de alto voltaje. La precisión en la fabricación a gran escala no es un lujo; es un requisito crítico para el tiempo de actividad de la máquina a largo plazo. Jucheng Precision resuelve esto utilizando técnicas de moldeo de baja presión que minimizan la tensión interna y aseguran que cada capó de gran tamaño encaje perfectamente. Nuestras revisiones de DFM se centran específicamente en la consistencia del espesor de pared para eliminar el efecto de aceite en lata comúnmente visto en carcasas de plástico de gran escala inferiores.
Shrinkage management is another area where JUCHENG excels. During the molding of oversized enclosures, even a 0.5% deviation in shrinkage can lead to a 5mm error across a one-meter part, making bolt-hole alignment impossible. By utilizing low-exothermic reaction polymers and temperature-controlled aluminum molds, we hold tolerances that rival small-scale CNC machining on parts the size of a tractor hood. This level of precision ensures that field repairs are simple and that replacement panels fit the existing chassis without manual filing or modification.
Advanced simulation software allows JUCHENG to predict fluid flow and solidification patterns before the first aluminum mold is ever cut. We analyze potential gate freeze locations and air pockets to ensure the Agricultural robot enclosure manufacturing process remains predictable and repeatable. This proactive approach reduces the iterative loops often required in large-scale production, allowing our clients to meet the tight seasonal deadlines of the farming industry without sacrificing mechanical integrity or aesthetic quality.
Moldeo por reacción por inyección para paneles estructurales de AgTech

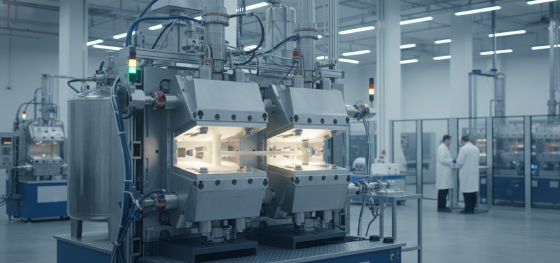

Reaction Injection Molding (RIM) utilizes low-viscosity liquid polymers that chemically react inside the mold to form high-strength solid parts. Because the liquid flows easily at low pressures, JUCHENG can use significantly lighter and more affordable aluminum tooling rather than hardened steel. This process is the primary solution for 100 to 5,000-unit production runs, offering structural integrity without the astronomical tooling investment of traditional methods. It allows AgTech companies to move from prototype to pilot production without being crushed by NRE costs.
Structural RIM panels allow for variable wall thicknesses within a single part, enabling engineers to add reinforcement ribs where impact is likely while keeping weight low in non-critical areas. This weight-to-stiffness ratio is vital for battery-powered autonomous tractors that must maximize operational hours per charge. Every kilogram saved on the enclosure is a kilogram that can be added to the battery capacity or the payload of the robot. This optimization is central to the value JUCHENG brings to every Agricultural robot enclosure manufacturing project.
By integrating metal inserts, threaded bushings, and sensor mounts directly into the RIM process, Jucheng Precision creates composite-like enclosures that can support heavy LiDAR stacks and multi-spectral cameras without the need for additional internal steel sub-frames. This encapsulation technology prevents moisture ingress around mounting points, which is a common failure mode for robots subjected to high-pressure cleaning or heavy rain. The result is a unified shell that simplifies the overall robot assembly and reduces the total part count for the manufacturer.
Furthermore, the RIM process allows for the production of hollow, double-walled panels when necessary. These "sandwich" structures provide exceptional thermal insulation, which is critical for robots operating in desert-like conditions where sun loading can drive internal component temperatures beyond their safe operating limits. By providing an integrated thermal barrier, the RIM enclosure acts as the first line of defense for the robot’s compute stack, ensuring that the precision agriculture robotics system remains operational even in the peak of summer.
DCPD: El escudo irrompible para robótica de servicio pesado
Dicyclopentadiene (DCPD) is a thermoset polymer providing industry-leading impact resistance and structural rigidity in extreme temperatures. Unlike standard ABS or Polycarbonate, which become brittle and shatter in freezing winter harvests, DCPD remains ductile and absorbs energy without cracking. This material is essentially unbreakable under standard farm conditions, making it the preferred choice for heavy-duty fenders and hoods on autonomous tillers. For fabricación de carcasas para robots agrícolas, DCPD offers a durability profile that traditional materials simply cannot match.
Corrosion resistance is another silent advantage of DCPD in the field. Farm robots are frequently exposed to liquid fertilizers and acidic pesticides that eat through traditional metal panels and degrade lower-grade plastics. DCPD is chemically inert to most agricultural chemicals, ensuring that the robot's exterior remains pristine through years of chemical application cycles. At Jucheng Precision, we recommend DCPD for any component larger than 0.5 meters that expects high physical abuse or chemical exposure.
The bionic toughness of DCPD is not just about resisting failure; it is about protecting the multi-thousand-dollar sensor arrays housed within. When a robot navigates an orchard and a low-hanging branch strikes the enclosure, DCPD deforms elastically to absorb the energy and then returns to its original shape. A metal fender would dent, potentially misaligning the internal sensors, while a standard plastic hood would shatter, leaving the electronics exposed to the elements. DCPD ensures that the robot stays in the field, not in the repair shop.
Additionally, DCPD is significantly lighter than the fiberglass (FRP) alternatives often used for large structural panels. Fiberglass is notorious for cracking under vibration and being difficult to recycle. DCPD, being a molded thermoset, offers much better dimensional consistency and a cleaner manufacturing process with less waste. This makes it the sustainable, high-performance choice for OEMs looking to future-proof their fleets in the [2026] market.
Texturas VDI y resistencia a la abrasión en el barro

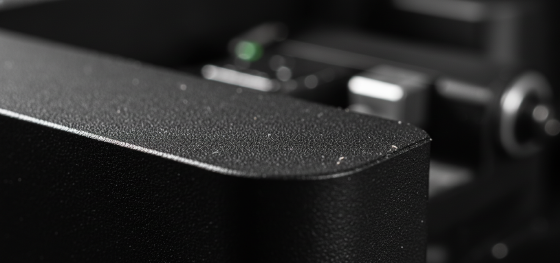

VDI 3400 standardized textures provide a rugged, matte finish that effectively hides the inevitable scratches and scuffs caused by corn stalks and gravel. A high-gloss finish on a farm robot is a design failure; it will look degraded within hours of operation. By applying a coarse VDI 27 or VDI 30 texture to the aluminum mold, JUCHENG creates a professional, industrial look that maintains its aesthetic value even after thousands of hours in the mud.
Textured surfaces also offer better grip for human operators who may need to open access panels with wet or muddy gloves. Beyond aesthetics, these textures help break up the sun's reflection, which can occasionally interfere with certain vision-based sensors if the enclosure is too reflective. Jucheng Precision consults with your designers to select the specific VDI grain that balances durability with the high-tech brand image required for modern robotic farming.
We offer integrated colorant options and secondary painting services in our dust-free facility. For robots destined for the most extreme UV environments, we apply automotive-grade 2K urethane topcoats with enhanced UV blockers. This multi-layered approach ensures the base polymer is protected from photodegradation while maintaining a vibrant brand color—whether it’s traditional "tractor green" or a modern "autonomy white." The coarse texture acts as an excellent substrate for these coatings, preventing the peeling and flaking often seen on smooth, unprimed plastic surfaces.
JUCHENG: Puente de escala hacia servicios de producción
Dominating the small-to-medium volume market requires a manufacturing partner that understands the specific deadlines of the AgTech industry. Growing seasons don't wait for delayed shipments. Jucheng Precision operates with a 24/7 manufacturing mindset in our Shenzhen precision manufacturing hub, delivering massive RIM components and CNC-machined skeletons with lead times as fast as 15 business days. We provide a bridge to production that allows you to scale from a single prototype to a fleet of 500 units seamlessly.
Integrating your design with JUCHENG’s expertise ensures that your robot survives the field-test season and moves into mass adoption. We offer comprehensive DFM reviews within 24 hours, identifying potential failure points in your enclosure design before they become costly mistakes. Whether you are building an autonomous fruit harvester or a fleet of drone-docking stations, Jucheng Precision provides the unbreakable shells that keep your technology running through mud and sun.
Our facility is also capable of post-processing RIM parts with our fleet of 150+ CNC machines. If your Agricultural robot enclosure manufacturing design requires ultra-tight tolerances for bearing seats or sensor mounts that molding alone cannot achieve, we can secondary-machine those features with 5-axis precision. This hybrid approach—combining the speed and scale of RIM with the precision of CNC machining—is what sets JUCHENG apart as a truly one-stop partner for the hardware challenges of the [2026] farm.
Preguntas frecuentes: Fabricación de hardware para robótica agrícola
Which material is best for farm robot fenders?
DCPD via RIM molding. It is virtually unbreakable and chemically inert.
What is the maximum part size JUCHENG can mold?
We manufacture structural panels exceeding 2.5 meters in length.
How do you protect enclosures from UV rays?
We use weather-stable resins and automotive-grade UV-resistant topcoats.
Can RIM molds include metal inserts?
Yes. We integrate precision CNC-machined metal bushings directly into the mold.
What is the lead time for RIM tooling?
Aluminum RIM molds are typically completed in 2 to 4 weeks.
Building a successful robot for the farm starts with acknowledging that the environment is your primary enemy. By choosing the right materials like DCPD and the right processes like RIM, you ensure that your innovation isn't sidelined by a cracked fender. Jucheng Precision remains committed to delivering the ruggedized hardware that the future of farming demands. Contact us today to start your next project.
