El momento es el impuesto invisible de la automatización industrial. Cada milisegundo que un brazo robótico pasa desacelerando o esperando que las vibraciones se asienten es una fuga en la rentabilidad de la fábrica. En el exigente panorama de las aplicaciones de la industria de impresión 3D, el enfoque ha pasado de fabricar piezas que parecen robots a diseñar piezas que hacen que los robots sean más rápidos. Este es el núcleo estratégico de la robótica de impresión 3D. Al utilizar la fabricación aditiva avanzada, los ingenieros pueden finalmente resolver la "Crisis de Inercia": la carga física de los pesados y sobredimensionados grippers metálicos que estresan los motores y limitan las velocidades de ciclo. Ya no estamos tallando cajas para sostener piezas; estamos creando sistemas esqueléticos de alta resistencia que integran integridad estructural con vacíos funcionales.
JUCHENG opera como un santuario técnico para las principales empresas de automatización del mundo. Entendemos que un componente robótico no es un soporte estático; es un atleta de alta aceleración que debe sobrevivir millones de ciclos sin fatiga ni desviación dimensional. Al combinar la resistencia bruta de las poliamidas reforzadas con fibra de carbono con la libertad geométrica de MJF y el refinamiento CNC de 5 ejes, proporcionamos una hoja de ruta unificada para la robótica de alta fidelidad. Esta guía va más allá de las maquetas visuales estándar para explorar la física de la masa en movimiento, la lógica de los circuitos neumáticos integrados y por qué el compromiso de JUCHENG con los materiales de alta durabilidad garantiza que sus sistemas automatizados funcionen en el pico absoluto de su rendimiento teórico.
La eficiencia en el mundo automatizado la obtienen aquellos que pueden aumentar la carga útil sin aumentar el consumo de energía. No solo está comprando un gripper de plástico; está comprando la capacidad de moverse más rápido con menos desgaste mecánico. Ya sea que esté construyendo un clasificador de almacén innovador o un robot quirúrgico de submicrón, la lógica de la impresión es su mayor escudo competitivo. Analicemos los pilares técnicos de las soluciones aditivas robóticas y veamos cómo la previsión técnica puede fijar la integridad de su próximo avance automatizado en la realidad física.
Peso Cinético: Combatiendo el Momento de Inercia
Laberintos Integrados: Diseño de Conductos de Aire Internos
EOAT Rápido: Grippers Personalizados para Cada Geometría
Fortificación Estructural: Navegando el Cambio Compuesto
El Ciclo de Vida JUCHENG: Validación y Tiempo de Actividad Operativo

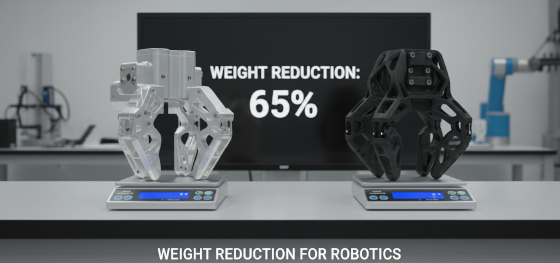

Peso Cinético: Combatiendo el Momento de Inercia
La física dicta que la fuerza requerida para mover un objeto es proporcional a su masa, pero la fuerza requerida para detenerlo es función de su apalancamiento. En robótica de impresión 3D, we focus on reducing the "Moment of Inertia" at the mechanical extremities. Every unnecessary gram at the end of a robotic arm acts as a lever against the internal gears and servo-motors of the primary joints. This lead to increased vibration during high-speed moves and requires longer "settling times" before the robot can perform its next task. A traditional aluminum gripper, while strong, carries too much dead weight.
JUCHENG solves this through "Lattice Consolidation." We don't print solid plastic blocks; we engineer skeletal frames that utilize internal Gyroid or Diamond lattices to provide rigid support with 60% less material mass. This reduction in kinetic weight allows the robot to accelerate faster and stop with surgical precision. For our clients in the semiconductor handling and automotive assembly sectors, this means a 15% to 20% increase in total throughput. We don't just reduce weight; we increase the "Dynamic Bandwidth" of the entire system. By making the robot's hand lighter, we enable the motors to operate within their efficiency sweet spot, reducing thermal heat-soak and extending the service life of expensive industrial actuators by years.

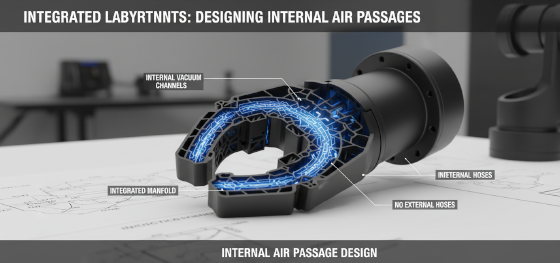

Laberintos Integrados: Diseño de Conductos de Aire Internos
The messiest part of traditional robotics is the "Umbilical Cord"—the cluster of external pneumatic hoses and electrical wires that snake along the arm. These hoses are prone to snagging, wear, and eventual failure, often leading to production downtime. Modern robótica de impresión 3D protocols allow JUCHENG to "hide the plumbing." We utilize the geometric freedom of MJF and SLS to design manifolds with integrated internal air channels. These are complex labyrinths carved into the very walls of the structural part.
By eliminating external hoses and heavy brass connectors, we further reduce the moving mass and simplify the overall assembly. These internal channels are designed using smooth, organic curves that optimize airflow and reduce pressure drops, allowing for faster vacuum engagement at the suction cups. At Jucheng Precision, we use high-density Nylon 12 and specialized vapor smoothing to ensure these internal voids are perfectly airtight. This level of functional integration is technically impossible for a standard CNC drill to reach. We transform a collection of separate parts into a single, monolithic "Smart Tool," reducing your part count and ensuring that the most complex internal fluid logic is locked into a compact, durable structure that survives millions of cycles.

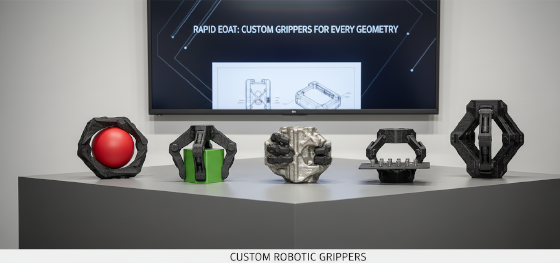

EOAT Rápido: Grippers Personalizados para Cada Geometría
Standard grippers are a compromise. They use flat contact pads that struggle to secure organic or complex 3D shapes, often leading to part slippage or surface damage. 3D printing robotics shatters this geometric ceiling through "Conformal End-of-Arm Tooling" (EOAT). At JUCHENG, we can print robotic fingers that are the exact negative of your part's complex surface. This allows for a perfect "wraparound" grip that distributes clamping force evenly, protecting delicate high-polish automotive trim or fragile medical glass.
The real value of our rapid EOAT service is the speed of iteration. In an agile factory, the parts being moved change every few months. If you rely on traditional tooling, you face an eight-week lead time for every design shift. JUCHENG can design, print, and ship a set of custom-contoured grippers in 48 hours. We often utilize multi-material strategies—printing a rigid nylon frame for strength and overmolding a soft TPU (Thermoplastic Polyurethane) contact surface to increase friction and prevent scratching. This hybrid approach allows the robot to handle a variety of hardware with the same hand, reducing the need for expensive tool-changers. We bridge the gap between "concept" and "clamping," providing the tactical flexibility needed for high-mix, low-volume automated production.
Fortificación Estructural: Navegando el Cambio Compuesto
Robotics is a brutal environment for plastics. Components are subjected to constant chemical exposure from coolants, high temperatures near welding cells, and the abrasive reality of industrial dust. Standard resins often reach their fatigue limit here, resulting in cracks and downtime. JUCHENG addresses this through "Material Fortification." For structural robotic frames and high-stress sensor brackets, we utilize Carbon-Fiber reinforced polyamides (Nylon-CF). These composites offer a tensile modulus that rivals soft aluminum but with the vibration-damping characteristics of a high-end polymer.
The addition of microscopic carbon fibers prevents "creep"—the slow deformation of plastic under a constant load. This ensures that a camera mount stays perfectly calibrated to its datum even after years of high-speed vibration. We also utilize high-temp materials like Ultem 3D Printing for robotic components that must operate in sterilized medical labs or near heat-intensive processes. By selecting materials with the correct "Mechanical Spine," we ensure that your 3D printed robotic hardware isn't a temporary prototype—it is a production-ready asset. Our DFM team audits your specific environmental load-case, matching the polymer’s chemical soul to the robot’s physical mission.
El Ciclo de Vida JUCHENG: Validación y Tiempo de Actividad Operativo
Choosing a manufacturer for high-performance robotics is a decision of operational trust. Most shops can follow a drawing; few can guarantee uptime. Jucheng Precision operates a facility where additive manufacturing is a documented engineering discipline, not a visual craft. Our 3D printing robotics protocol includes full CMM (Coordinate Measuring Machine) verification of critical features. We provide our clients with digital inspection reports that prove every mounting hole and sensor seat is perfectly positioned relative to your master CAD data.
We also manage the "Digital Spares" economy. For our global automation partners, we maintain a secure library of their tooling designs. If a gripper fails in a factory in Michigan, JUCHENG can print a certified replacement and ship it immediately, ensuring the line is back up in days rather than weeks. This transparency and scalability is why JUCHENG is the preferred partner for the world's most innovative robotics brands. We don't just ship parts; we provide the engineered certainty that your automation systems remain agile, precise, and durable. Contact Jucheng Precision today for a comprehensive technical review and see how our robotic additive protocols can armor and accelerate your next automated breakthrough.
