Bridging the challenging gap between initial functional prototyping and full-scale series manufacturing requires robust bridge tools that can deliver hundreds or thousands of parts quickly. When vehicle development teams prepare for rigorous pre-series testing, crash evaluations, and homologation trials, implementing automotive rapid tooling provides an indispensable schedule advantage. Without quick-turn metal bridge tools, testing component behavior using authentic production resins remains financially unviable.

Utilizar un proveedor utillaje rápido provider ensures that soft metal inserts transition smoothly from digital 3D models into high-performance moldes de inyección press floors. Let us examine the toolroom machining mechanics and bridge manufacturing protocols that accelerate vehicle launches.

Module 1 – Definition and Working Principles of Bridge Tooling

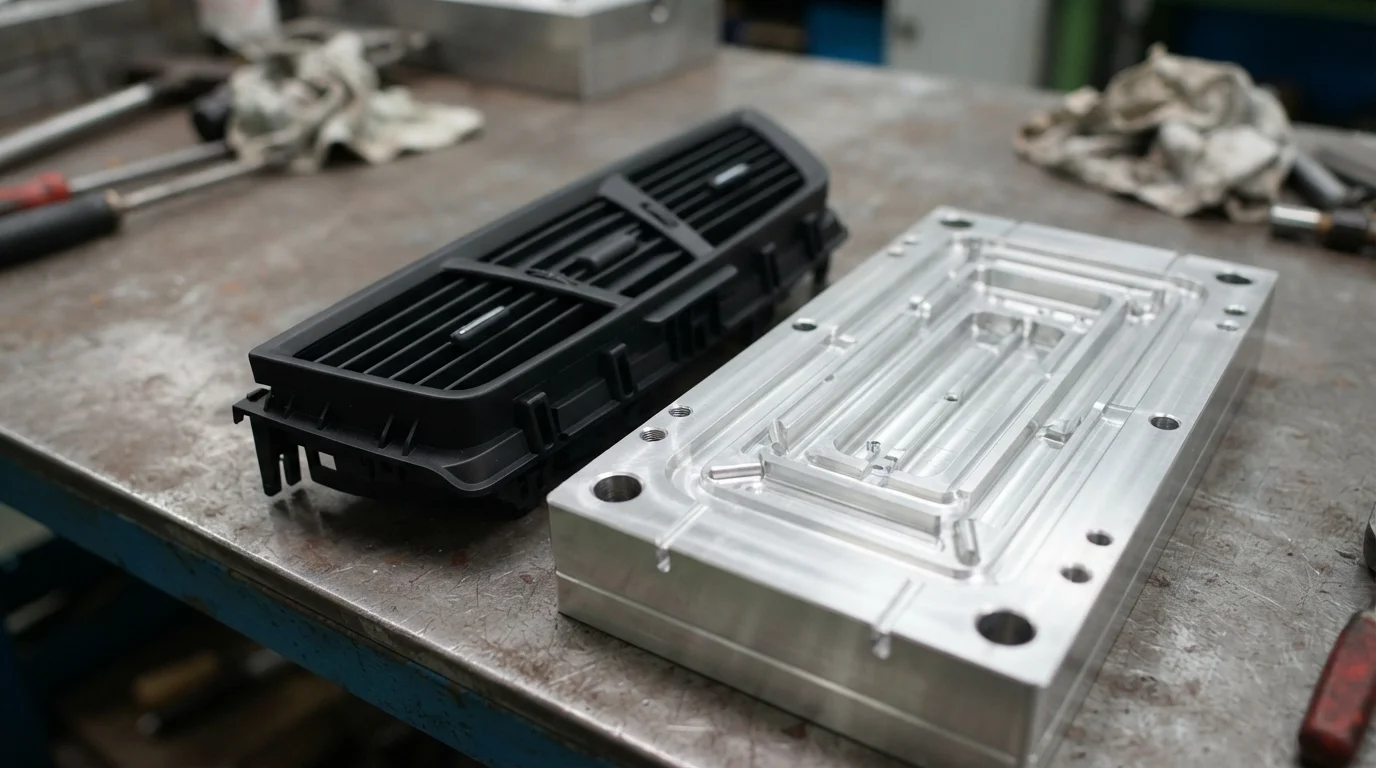

Rapid bridge tooling is an accelerated metal-cutting method that constructs robust aluminum or soft steel mold inserts to produce low-to-medium volume production parts ahead of mass tooling schedules. The working principle relies on high-speed CNC cavity milling and streamlined mold base assembly, allowing toolmakers to deliver functional samples in weeks rather than months. While custom geometries are often verified via mecanizado CNC, pre-series batch manufacturing relies entirely on efficient rapid mold techniques.

To execute structured bridge mold workflows on pre-series components, technicians could follow these practical steps:

• DFM Shrinkage Analysis: Pre-scale CAD cavity dimensions to absorb specific polymer volumetric contraction rates during cooling.

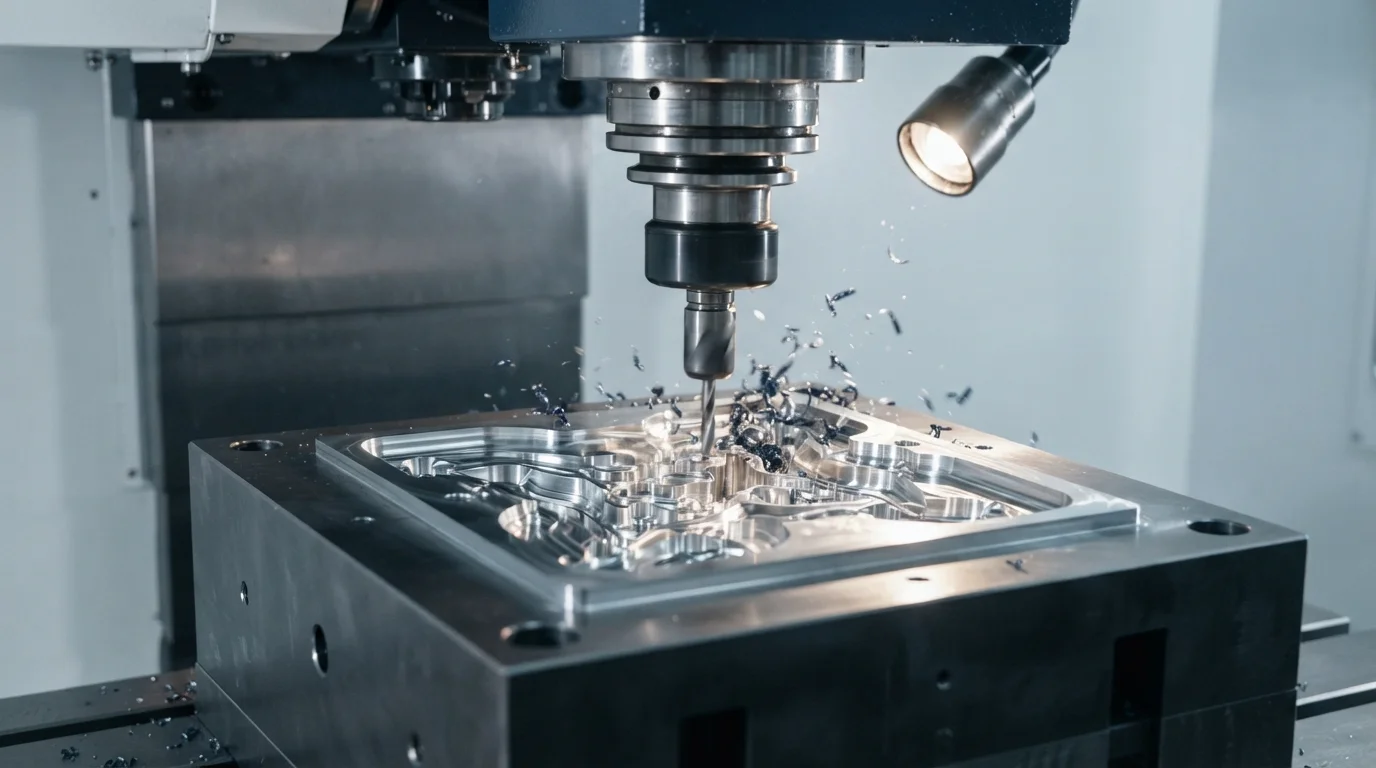

• High-Speed Alloy Machining: Carve aerospace aluminum or pre-hardened steel blocks using multi-axis milling centers.
• T1 Sampling Verification: Run initial trial shots on production presses to validate dimensional accuracy and mechanical fitment.

Módulo 2 – Escenarios de aplicación principales

Pre-series bridge manufacturing is vital across crash-test validation, road trial campaigns, and regulatory homologation where authentic material performance dictates market approval. When engineering teams prepare vehicles for final safety certification, deploying specialized automotive rapid tooling campaigns solves critical timing and material constraints. Feedback from professional prototyping groups on Reddit and Facebook indicates that soft metal bridge tools are essential for pre-series builds.

Los sectores de aplicación principales incluyen:

• Crash Testing: Producing structural interior brackets and exterior bumper components from real engineering resins to evaluate impact absorption.
• Road Trials: Fabricating 1,000 to 5,000 pre-series parts for fleet endurance testing under harsh environmental conditions.
• Homologation Validation: Supplying certified polymer components to regulatory bodies for safety and emissions clearance.

Módulo 3 – Factores clave de selección para el éxito del proyecto

When specifying bridge tooling for pre-series manufacturing, engineering teams must weigh alloy lifespan expectancy against thermal cooling efficiency and budget constraints. Evaluating these core parameters ensures your program meets launch deadlines.

Módulo 4 – Consejos de instalación y mantenimiento

Proper press installation and routine toolroom servicing safeguard bridge mold performance across active pre-series production runs. Protecting parting line shut-offs from high clamp tonnage ensures long-term part quality.

Key installation and maintenance tips include:

• Clamping Force Calibration: Set press tonnage accurately to prevent crushing soft aluminum parting line shut-offs.
• Cooling Waterline Flushing: Clear mineral buildup from internal channels regularly to maintain stable thermal regulation.

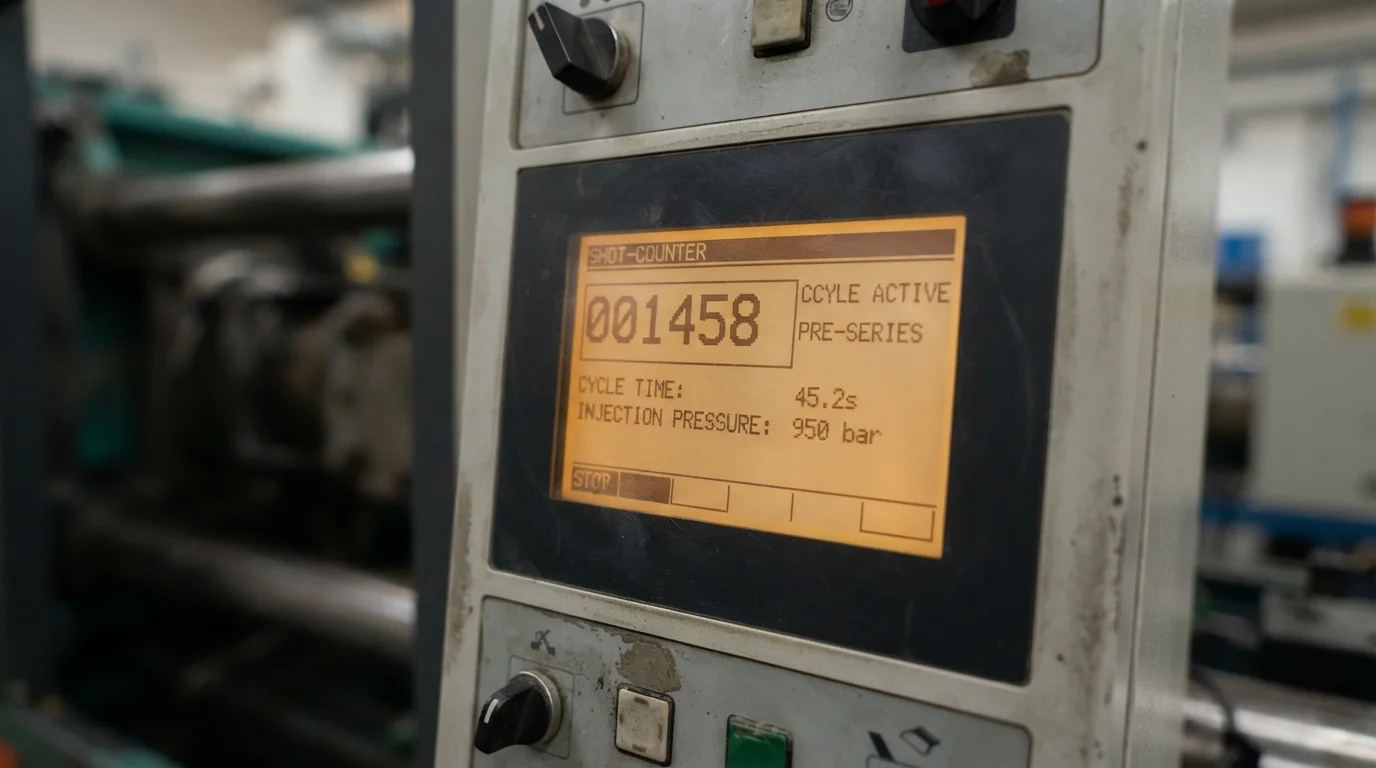

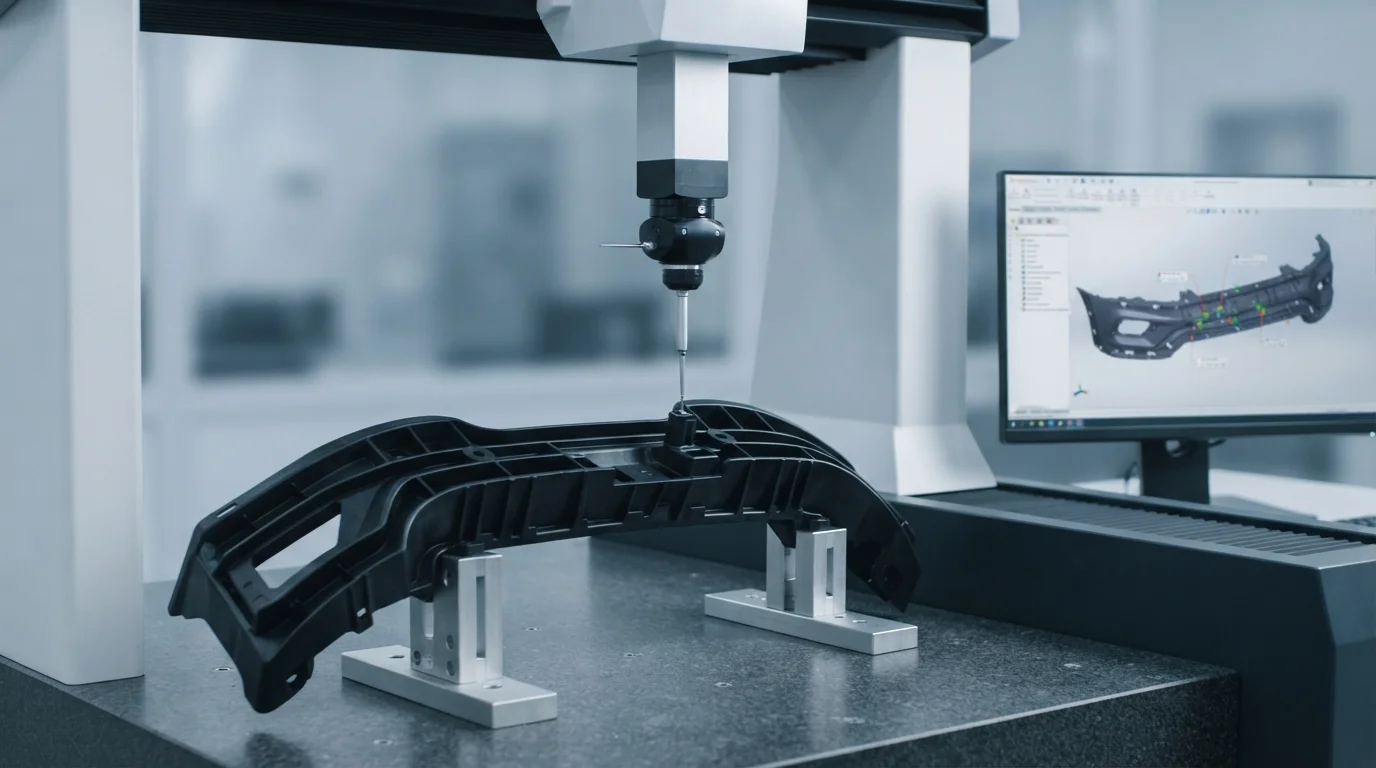

• Scheduled Metrology Audits: Inspect sample parts periodically to catch early tool wear before out-of-tolerance batches occur.

Module 5 – Frequently Asked Questions (FAQ)

Module 6 – Why Choose JUCHENG for Your Project

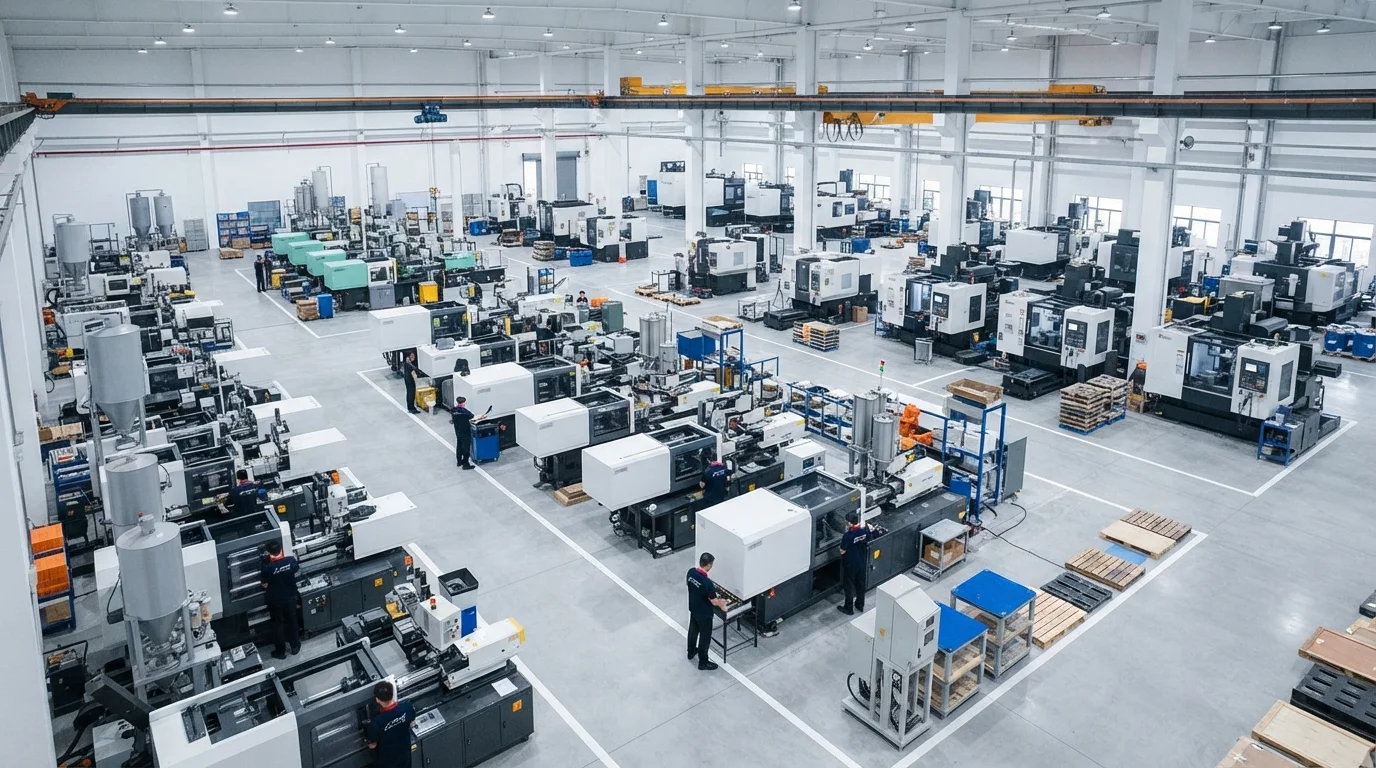

Executing pre-series bridge manufacturing requires an experienced tooling partner with robust press capacity. JUCHENG supports hardware innovators by delivering comprehensive DFM gratuito las 24 horas reviews that analyze alloy selection, shrinkage factors, and gate placement prior to tool cutting. Founded in Shenzhen in 2012 with an 8,000-square-meter facility in Dongguan, our factory houses 150+ advanced machines, including specialized rapid tooling workshops and 35+ injection presses.

Backed by ISO 9001, ISO 14001, ISO 13485, and IATF 16949 certifications, our engineering teams ensure that executing high-performance automotive rapid tooling programs achieves structural precision and absolute delivery reliability.
